West Northamptonshire Council: Gayton Leachate Treatment Plant

SECTOR
Municipal
SERVICE
Operations and Maintenance
View from Gayton Leachate Treatment Plant

Gayton Leachate Treatment Plant serves the old Gayton Landfill site, which closed in 1988, located around 1 km north east of Gayton village and adjacent to the Grand Union Canal. The landfill contains an estimated 800,000 m³ of mostly domestic and commercial waste.

Leachate is collected through a network of drains and directed to a pumping chamber feeding the treatment plant, which was built in 2001, converted to a membrane bioreactor (MBR) in 2007, and upgraded in 2011 with a second filtration unit. Capable of treating up to 100 m³ per day, it discharges to a tributary of the Wotton Brook under an Environment Agency permit.

Alpheus has managed the plant’s operation and maintenance on behalf of West Northamptonshire Council (WNC) since July 2016, in line with the Environment Agency’s discharge consent requirements.

In recognition of more than eight years of exceptional environmental compliance and operational performance, WNC and Alpheus renewed their partnership in 2024 with a further seven-year agreement, ensuring the continued mitigation of environmental harm from landfill leachate.

Services Provided

Alpheus is responsible for the day-to-day management of the plant, ensuring reliable operation, maximising efficiency, maintaining full regulatory compliance, and reducing any recirculation of leachate back to the landfill site. The scope of services includes:

  • Operation and maintenance of the leachate treatment plant
  • Routine equipment inspections and servicing, including off-site membrane cleaning
  • Membrane replacement when required
  • Regular review and adjustment of operational parameters to optimise performance
  • Routine sampling and dipping of landfill boreholes
  • Environmental monitoring to meet permit requirements
  • 24/7 emergency call-out services
  • Sludge removal and disposal by tanker, as required
  • Provision and management of critical spare parts
  • Regular reporting
  • Highest standards of health and safety

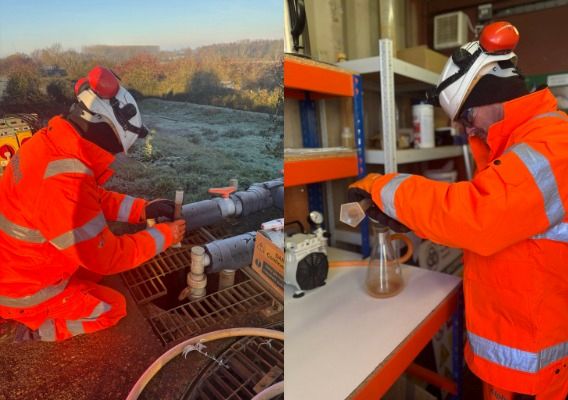

Plant Operator carrying out suspended solids sampling and test

Alpheus was originally selected by the Council to operate the leachate treatment plant and associated landfill due to our proven track record in managing similar facilities. As part of the tender process, Alpheus invited the Council to visit one of our local sites, which we have successfully managed for several years, to demonstrate our strong operational expertise and effective approach to management contracts.

Within just a few weeks of receiving the initial enquiry, Alpheus assumed full responsibility for the site, rapidly developing a comprehensive understanding of the plant, the client, and its unique operational challenges. This in-depth insight enabled Alpheus to deliver a tailored operations and maintenance package designed specifically to meet the Council’s needs.

Highlights over Alpheus’s tenure have included:

Reducing whole-life operational costs

This has been achieved by establishing an off-site membrane cleaning facility, designed to maximise performance and extend membrane lifespan. Off-site cleaning is proven to be five times more effective than in-situ cleaning, restoring and sustaining plant throughput for longer periods. This approach not only enhances plant efficiency, but also lowers the risk of plant failure and the associated need for costly on-demand tankering.

Improvement in Real-Time Effluent Quality Monitoring

Effluent quality monitoring has been enhanced through optimisation and upgrading of both interstage and final effluent monitoring equipment. Two key improvements include:

  • Installation of Dissolved Oxygen (DO) Monitoring in the Aeration Tank - This provides a continuous, real-time indication of the biological health and performance of the activated sludge process, enabling operators to quickly detect and respond to process imbalances.
  • Upgrade of the Final Effluent Ammonia Analyser- The original analyser has been replaced with a unit capable of accurately measuring low concentrations of ammonia, ensuring compliance with the discharge permit and providing more reliable performance data.

Amalgamation of Sampling and O&M Contracts

During the initial years of Alpheus’ tenure, landfill and final effluent sampling was undertaken by a third-party contractor appointed directly by the council. As Alpheus became established on site and demonstrated extensive knowledge and experience in operating wastewater treatment plants, it was agreed that both the sampling and O&M services would be best managed by a single provider. Consolidating these responsibilities under Alpheus improved efficiency, streamlined communication, and ensured greater accountability for overall site performance.
